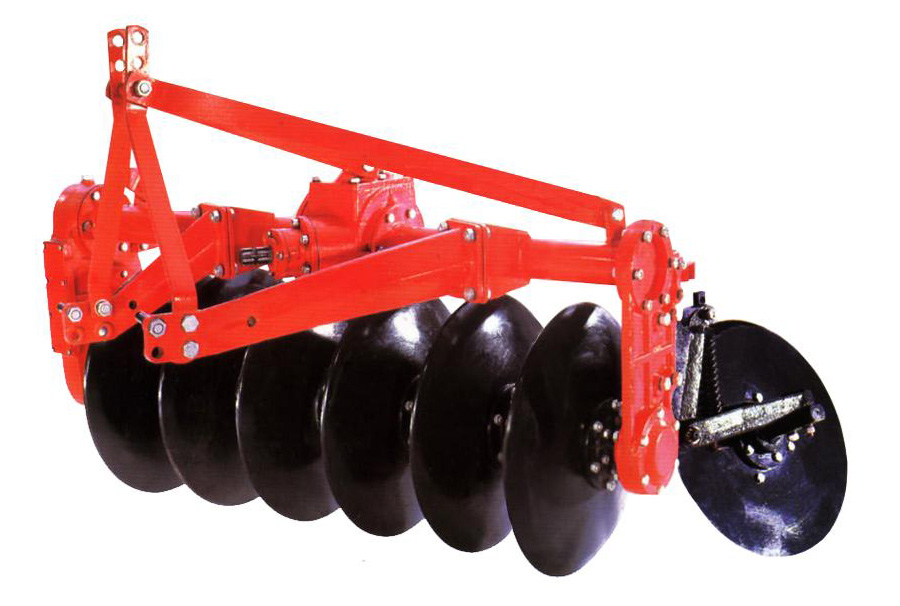

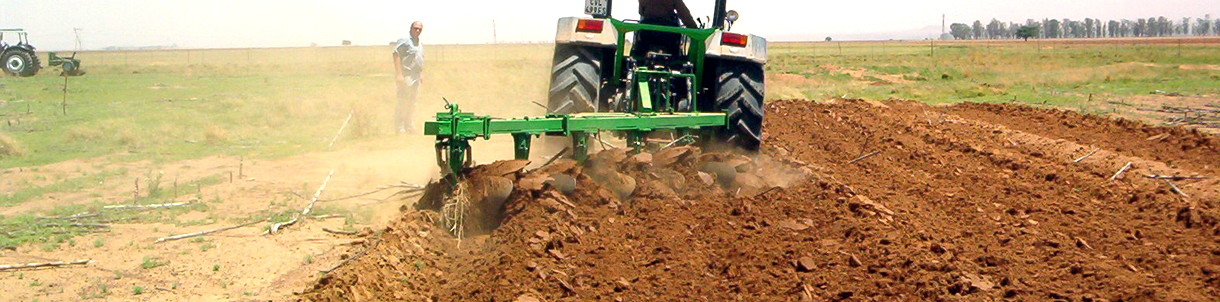

The disc plough is the perfect tool when ploughing uneven ground that has obstacles and buried rocks.
These ploughs have been specifically made to suit the tractors we produce.
2 Furrows 3 Furrows 4 Furrows
SPECIFICATIONS | |
Frame Type | Tubular Seamless Steel Pipe |
Number of furrow | 2, 2+1, 3, 3+1 |
Furrow width | 254 mm |
Max. working depth | 300 mm |
Longitudinal clearance | 522 mm |
Furrow wheel dia | 508 mm |
Plain discs | 660 mm - inside or outside bevel |
Bearings | Taper roller |
Weight | 360 kg (3 Furrow ) |
Tractor Compatibility | 50 to 85 HP |
