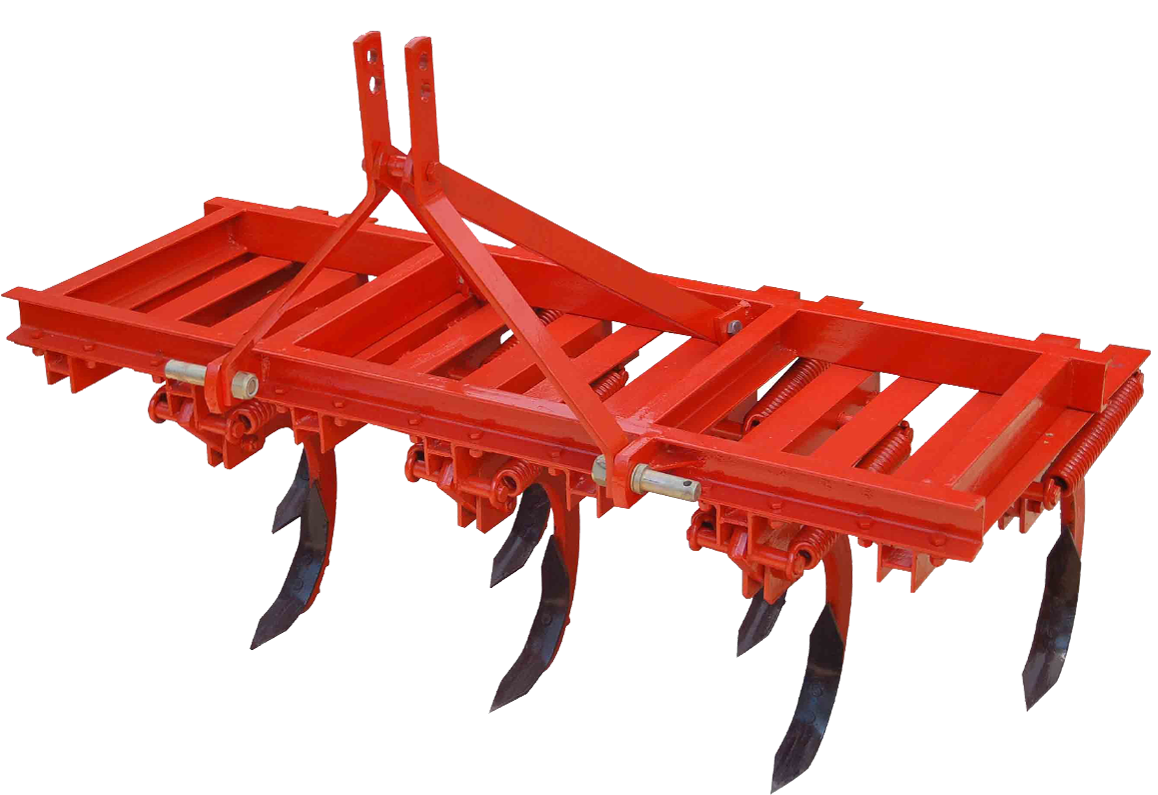

Ideal for general cultivating, weeding, pasture renovating and preparing seedbeds. The tiller is available in 4 widths: 9, 11, 13 and 15 tines. The tiller is fully mounted on the tractor by means of category I or II three point hitch pins. The spring-loaded tines swing back under break-away pressure of 163Kg: pass over the obstruction and return to the working position without affecting the working depth of the implement. The continual flexing action of the tines shatters the soil breaking up the clods. The tiller is fitted with 51 mm reversible shovels which are designed for deep penetration. A working depth up to 229 mm is possible in most soils and is simply controlled while sitting on the tractor seat.
ADVANTAGE

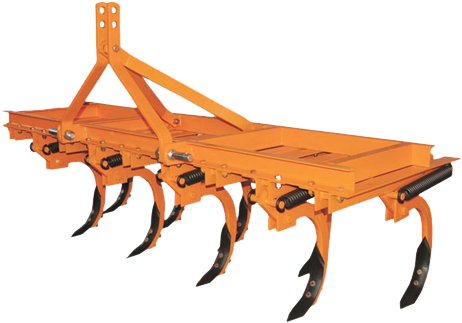

The AGRO's SPRING LOADED CULTIVATOR (TILLER) is designed for the light and medium soils. Used for loosening and aerating soil to a depth of 250 mm. Prepares seed beds quickly and economically.When one tyne strikes a hidden object, the others continue to work at correct depth. 9, 11, 13, 15 Tines. Different Style Frames / Taggled Type.
| SPECIFICATIONS | |||
| Number of Tines | 9 | 11 | 13 |
| Linkage Capacity | I | I & II | I & II |
| Frame | Round steel torsion tubes | ||
| Overall Width | 2180 mm | 2900 mm | 2900 mm |
| Overall Length | 813 mm | 813 mm | 813 mm |
| Tine Spacing | 178 mm | 229 mm | 229 mm |
| ** | 229 mm | 254 mm | * |
| Overall Height | 1.02 mm | 1.02 mm | 1.02 mm |
| Cultivating Width | 1880 mm | 2590 mm | 2790 mm |
| Max. working depth | 229 mm | 229 mm | 229 mm |
| Weigh | 209 Kgs | 236 Kgs | 266 Kgs |
| Setting | |||
| Type of Tines shovels | Spring loaded -15 mm reversible point shovels | ||
| Tractor Compatibility | 25-36 HP | 35-50 HP | 50-85 HP |
